MP3300iec

MP3300iec

(Code: MP3300iec)
En Stock
0g

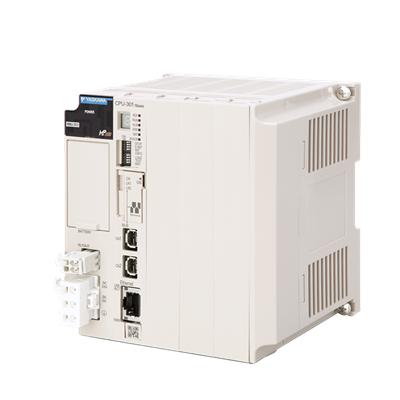

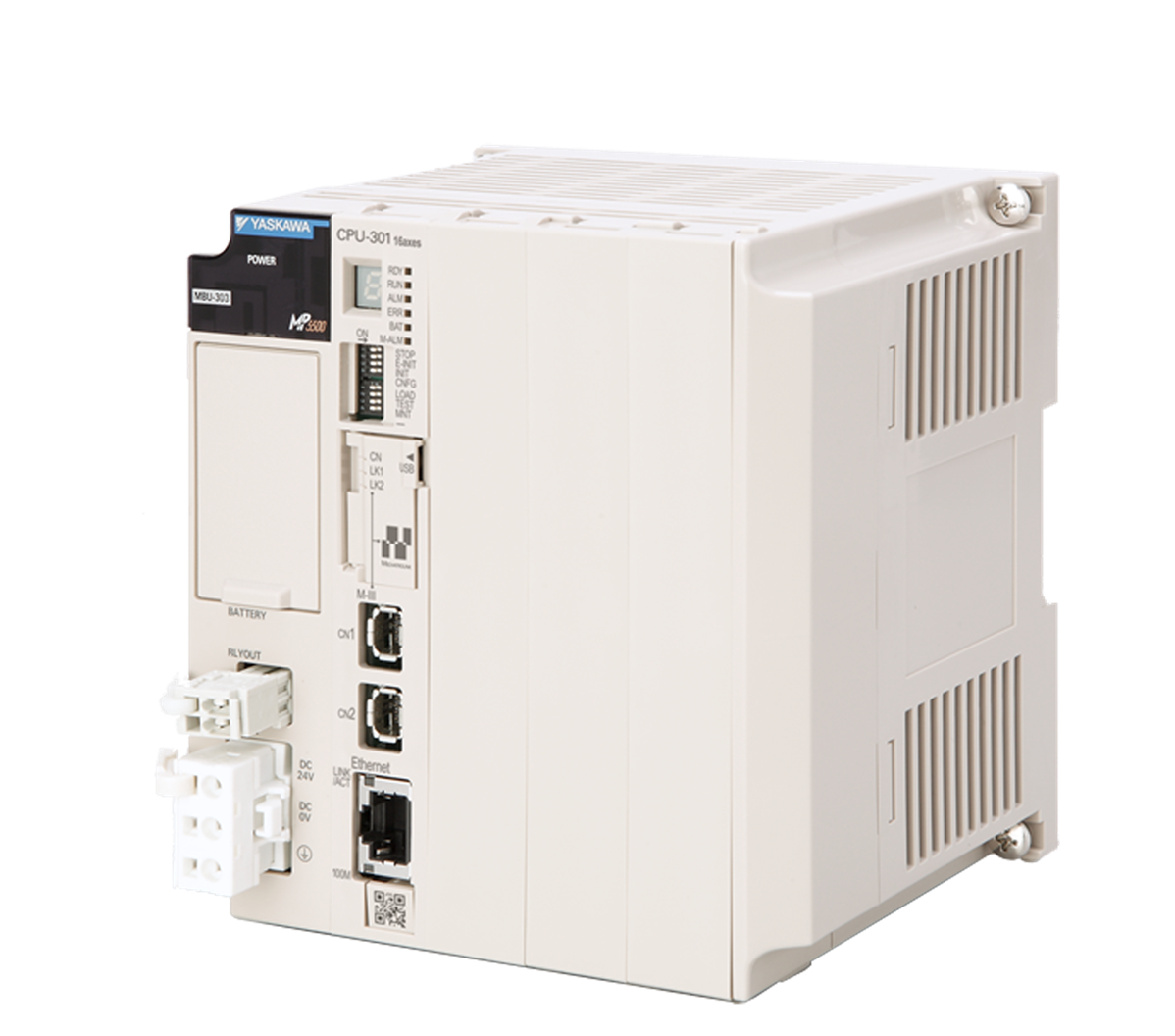

MP3300iec is a compact machine controller with 4, 8 or 20 axes of synchronized control.
IEC Programming Environment and Controller-Centric Commissioning using MECHATROLINK-III motion network

One software platform

  • MotionWorks IEC, allows efficient programming and handling of applications within a standard IEC 61131-3 environment
  • Advanced camming and gearing functions
  • The MECHATROLINK-III open Ethernet based motion network (100 Mbps) enables machine configuration from a single location with one software tool. Using self-tuning abilities of a servo system commissioning time is greatly reduced.
  • Open standards EtherNet/IP and Modbus TCP to connect to many HMI and PLC in the market
  • The controller can operate local amplifier outputs. This reduces panel cost and space requirements when just a couple of outputs are necessary.
  • Libraries enable importation of previously developed logic

A Multitude of Options
Choose from ten option cards offered for the expansion slot to accommodate most machine requirements.



axes contrôlés 4, 8 or 20
Capacités du programme
langages de programmation standard IEC 61131-3
PLCopen blocs fonctionnels
Huit emplacements libres pour les modules optionnels à l'aide de la crémaillère attachable
Serveur Web
Serveur OPC
Les fonctions de contrôle Contrôle de position, engrenage, contrôle de la vitesse, le contrôle de couple, CAM
Accel / traitement de decel Linéaire, Exponentiel, moyenne mobile
Program languages IEC61131-3 languages
MotionWorks® IEC Pro: Ladder Diagram, Function Block Diagram, Instruction List, Structured Text, Sequential Function Chart
MotionWorks® IEC Express: Ladder Diagram, Function Block Diagram, Instruction List, Structured Text, Sequential Function Chart
Communication MECHATROLINK III
Ethernet (100 Mbps)
International standard UL, c-UL, CE
