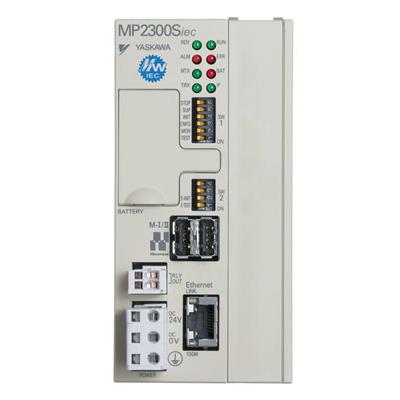

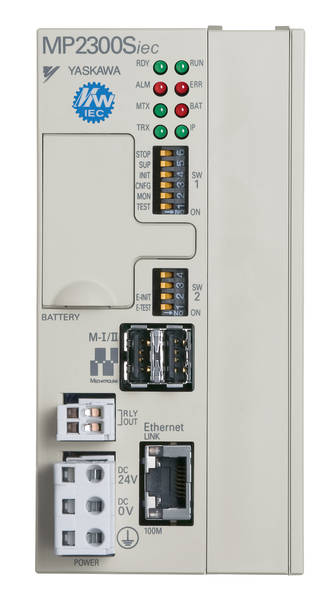

MP2300Siec

MP2300Siec

(Code: MP2300Siec)
En Stock
0g
Number of controlled axes:
4-8-16 axes


  • Communication Protocols - Open standards EtherNet/IP and Modbus/TCP to connect to many HMI and PLC in the market.
  • Standard Programming Languages - IEC61131-3 standard for efficient software programming and handling
  • PLCopen Function Blocks - YASKAWA developed the Motion Control interface MotionWorks IEC to comply with PLCopen "standard"
  • Programmable Amplifier Outputs - The controller can operate local amplifier outputs. This reduces panel cost and space requirements when just a couple of outputs are necessary.
  • Reusable Code - Libraries enable importation of previously developed logic.
  • Controller-Centric Commissioning - The MECHATROLINK motion network enables machine configuration from a single location with one software tool. Using self-tuning abilities of a servo system commissioning time is greatly reduced.
  • A Multitude of Options - Choose from ten option cards offered for the expansion slot to accommodate most machine requirements


Technical Details

Modele MP2300Sie avec l'environnement de programmation IEC
Caractéristiques langages de programmation standard IEC 61131-3
PLCopen blocs fonctionnels
Ouvertures pour modules optionnels
MP2300Siec: 1
Webserver / serveur OPC
Nombre d'axes contrôlés 4-8-16 axes
Les fonctions de contrôle Contrôle de position, engrenage, contrôle de la vitesse, le contrôle de couple
Accel / traitement de decel
ˈlinēər
Linéaire
Langue du programme IEC 61131-3
PRO: LD, FBD, IL, ST, SFC
Express: LD / FBD, ST
I/O Peut être étendu par I / O
Module et distribués
IO
Communication MECHATROLINK-II
Ethernet (100 Mbps): - EtherNet / IP, Modbus TCP
Standard international UL, c-UL, CE (pour de plus amples informations, contactez YASKAWA l'Europe GmbH)
